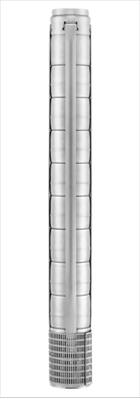

Stainless Steel Submersible PUMPS

General Data


Applications

SSP pumps are suitable for the following applications:



  • Raw water supply
  • Irrigation systems
  • Dewatering systems
  • Industrial applications



Pumped liquids

Clean, thin, non-agressive liquids without solid paticles or fibres. The special SSP-K versions made of AISI316 (1.4401) stainless steel is available for aplications involving aggresive liquids.

Pump Range

Type SSP17 SSP30 SSP45 SSP60 SSP75 SSP95 SSP125 SSP160 SSP210
Steel: DIN 1.4301
(AISI304) 		• • • • • • • • •
Steel: DIN 1.4401
(AISI316) 		• • • • • • • • •
Connection Rp 2 1/2" Rp 3" Rp 4" Rp 4" Rp 5" Rp 5" Rp 6" Rp 6" Rp 6"
No of Vanes 6 7 6 7 6 7 7 6 7
Pump Shaft
Diameter 		20.00 22.00 22.00 22.00 25.40 25.40 30.16 30.16 42.86

Parts & Materials

Pos. Component Materials Standart K-Version
1 Suction Case Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
2 Strainer Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
3 Neck Ring NBR - - - -
4 Shaft Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
5 Collet Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
6 Impeller Wear Ring NBR 1,4301 AISI 304 1,4401 AISI 316
7 Impeller Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
8 Diffuser Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
9 Diffuser Bearing NBR - - - -
10 Neck Ring NBR - - - -
11 Split Cone Nut Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
12 Upper Bearing Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
13 Valve Cup Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
14 Discharge Case Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
15 Strap Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
16 Cable Guard Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
17 Bearing for stop ring Bronze - - 1,4401 AISI 316
18 Nut for Stop Ring Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
19 Coupling Stainless Steel 1,4301 AISI 304 1,4401 AISI 316
